Stadium LED Displays

Silu Technology Limited

SoarLume`s Stadium LED display screen adopts the SMD3535 high brightness scheme, with a brightness of ≥7,000 nits, IP65 protection, 1/2 constant current drive, refresh rate ≥ 1,920 Hz, viewing angle H160 °/V120 °. The LED banner display adopts a soft mask design to prevent players from being hit and injured. It supports HDR, DCI-P3, virtual partition advertising, multilingual subtitles, MTBF>50,000 h, meeting the standards of FIFA, UEFA, and top domestic leagues.
soarlume soccer led banners rental fixed advertisings

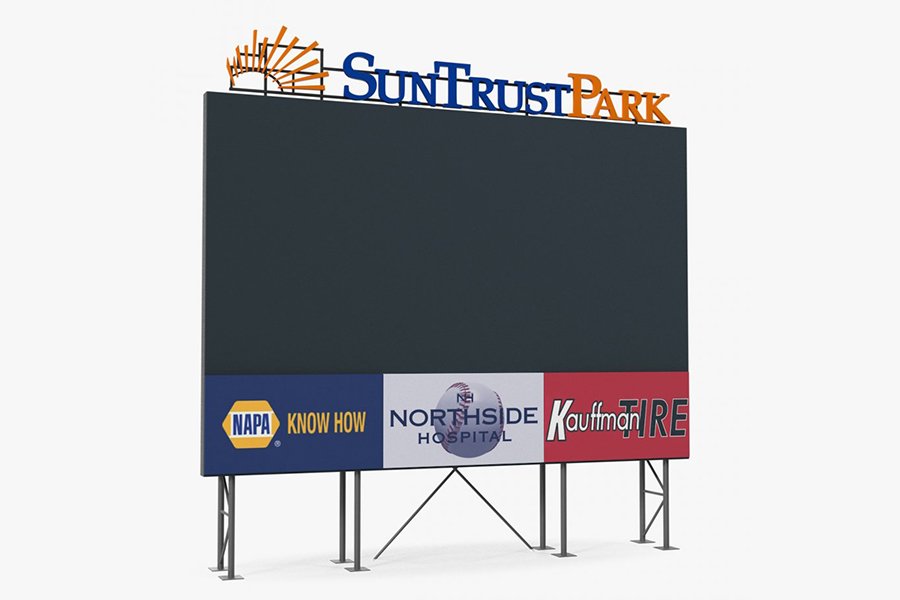

soarlume stadium led displays fixed billboard

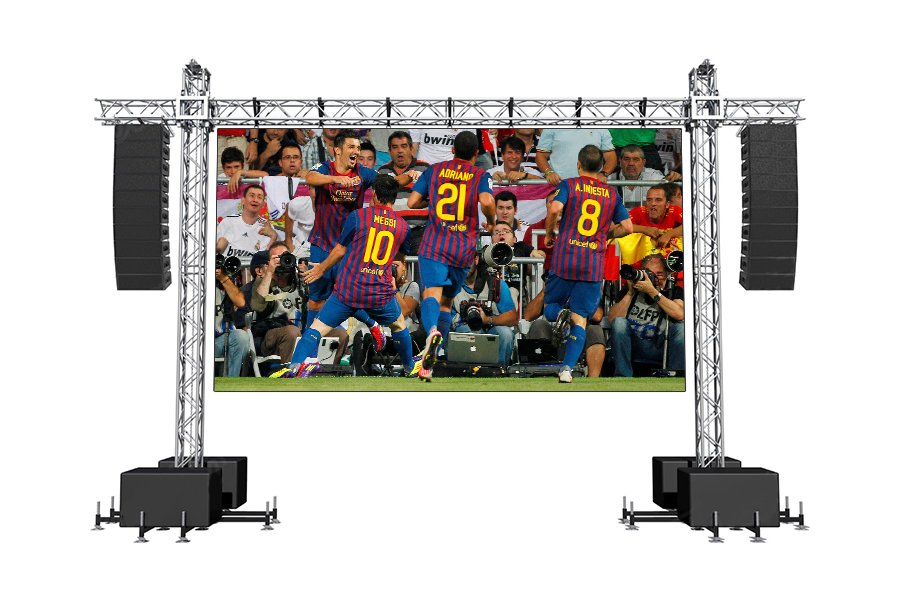

soarlume stadium led displays rental video wall
Our soccer LED display screen for a football field is the core hardware for event broadcasting, commercial operation, and audience experience. It is divided into four major scenes: fence screen, fighting screen, stand screen, and pillar screen, collectively referred to as Stadium LED. The resolution of large video display screens has evolved from 1080P to 4K and 8K, with a brightness of ≥ 6,500 cd/m², ensuring clear and visible video content under strong light. The box has an IP65 protection level and a display color gamut of DCI-P3. The rental box has a lifting load of ≥ 8 kN, and the fixed installation box is stable and reliable.
The control system adopts NovaStar 2K/4K main control, fiber optic loop+dual power hot standby, delay<1 frame, compatible with SDI 12G, HDR10, HLG; Intelligent power on of distribution cabinet branch, PLC remote monitoring of temperature, humidity, smoke, lightning protection ≤ 4 Ω, energy saving 20%. The content layer integrates timing and scoring, player tracking, and virtual offside lines. Through the DOOH platform, programmatic advertising is implemented, and CPM bidding is used to create millions of incremental revenues for the club. It is the “fifth broadcasting machine” of smart sports venues.

Main Products

Filter
  • 4k led display fs v3 Read more Quick View
    Rated 0 out of 5

    4K UHD LED Display FS-V3

     Read more Indoor LED Displays

    SoarLume`s small pixel pitch ultra-high definition LED display refers to the improvement of LED display manufacturing with GOB technology, the resolution of traditional LED displays has been significantly enhanced.
    1. Pixel Pitch 0.9mm~2.5mm
    2. LED Lamps SMD1010/SMD1212/SMD1515
    3. Cabinet size/weight L500xW500/5kgs
    4. 3840 Hz high refresh rate
    5. 1000~1500 nits brightness
    6. Input 110v-230v 400 Watt/Cabinet max
    7. 250x250mm LED module
    8. Black color cabinet / Customized color*

  • customized led billboard bs v4 Read more Quick View
    Rated 0 out of 5

    Customized LED Billboard BS-V4

     Read more Outdoor LED Displays

    SoarLume`s outdoor customized series LED display comes with a standard panel size of 1000*250mm, which can be easily cut into two smaller sizes, 750x250mm and 500*250mm. This screen allows you to customize your display based on your specific needs. Our outdoor high-pixel fixed LED display, 100% front & rear maintenance to save labor costs, and suits different application areas.
    1. Pixel Pitch 1.95/2.6/3.9/4.8mm
    2. LED Lamps SMD1515/1921
    3. Cabinet size/weight L1000xW250mm/5kgs/IP65
    4. 3840 Hz high refresh rate
    5. 3500~5000 nits brightness
    6. Input 110v-230v 400 Watt/Cabinet max
    7. 250mmx250mm front service LED module
    8. Black color cabinet / Customized color*

  • flexible led display sf v1 Read more Quick View
    Rated 0 out of 5

    Flexible LED display SF-V1

     Read more Indoor LED Displays

    The flexible LED display design distributes the magnets to ensure that all modules are assembled smoothly on the structure. It also balances the strength of the modules when they are bent. Modules have locating pins for seamless and easy assembly. Fully flexible PCB and silicon material on the rear side of the PCB. Full frontal service.
    1. Pixel Pitch 1.25mm~2.5mm
    2. LED Lamps SMD1212/SMD1515/SMD1921
    3. Cabinet size/weight L640/500xW480/500mm/5kgs
    4. 3840 Hz high refresh rate
    5. 500~1500 nits brightness
    6. Input 110v-230v 400 Watt/Cabinet max
    7. 320x160mm Soft LED module
    8. Black color cabinet / Customized color*

  • indoor led display fs v4 Read more Quick View
    Rated 0 out of 5

    HD Indoor LED Display FS-V4

     Read more Indoor LED Displays

    SoarLume`s Ultra-Thin FS series for seamless FHD/4K visuals. These displays optimize space with a slim 38mm profile, enabling snug wall mounting. Enjoy simplified operation with easy front installation and maintenance. Featuring flip chip COB technology, they consume less power—Max: 400w/sqm, Ave: 120w/sqm, saving over 30% compared to conventional fine pitch LED displays.
    1. Pixel Pitch 1.25/1.56/1.87/2.3mm
    2. LED Lamps SMD1010/1212/1515
    3. Cabinet size/weight L600xW337.5mm/5kgs
    4. 3840 Hz high refresh rate
    5. 1000~1500 nits brightness
    6. Input 110v-230v 400 Watt/Cabinet max
    7. 300×168.75mm Front Service LED module
    8. Black color cabinet / Customized color*

  • hd outdoor led billboard bs v5 Read more Quick View
    Rated 0 out of 5

    HD Outdoor LED Billboard BS-V5

     Read more Outdoor LED Displays

    SoarLume`s high definition lightweight LED display is a quick-detachable LED display screen designed with a die-cast aluminum casing, featuring ultra-light (5kg), ultra-thin, and quick installation characteristics. It supports multiple installation methods, such as lifting and seat mounting, and is suitable for various indoor and outdoor scenarios.
    1. Pixel Pitch 3.91mm~10.41mm
    2. LED Lamps SMD1921/SMD2727/SMD3535
    3. Cabinet size/weight L500xW500/5kgs
    4. 3840 Hz high refresh rate
    5. 3500~7000 nits brightness
    6. Input 110v-230v 600 Watt/Cabinet max
    7. 250x250mm Front Service LED module
    8. Black color cabinet / Customized color*

  • hd outdoor led display bs v3 Read more Quick View
    Rated 0 out of 5

    HD Outdoor LED Display BS-V3

     Read more Outdoor LED Displays

    SoarLume`s customized die-cast aluminum frame design, the ultra-light outdoor LED display screen is characterized by its lightness, thinness, and quick installation. It can be quickly installed, removed, and transported, making it suitable for large-scale leasing and fixed installation applications.
    1. Pixel Pitch 3.91mm~10.41mm
    2. LED Lamps SMD1921/SMD2727/SMD3535
    3. Cabinet size/weight L1000xW250/500/1000/8kgs
    4. 3840 Hz high refresh rate
    5. 3500~8000 nits brightness
    6. Input 110v-230v 500 Watt/Cabinet max
    7. 250x250mm Front Service LED module
    8. Black color cabinet / Customized color*

  • indoor rental led display rs v1 Read more Quick View
    Rated 0 out of 5

    Indoor Rental LED Display RS-V1

     Read more Indoor LED Displays

    SoarLume`s die-casting aluminum panel design, the LED rental display screen is characterized by its lightness, thinness, and fast installation. The lightweight and easy install & dismantle, and transport box is suitable for large-scale leasing and fixed installation applications.
    1. Pixel Pitch 2.6/2.97/3.91mm
    2. LED Lamps SMD1515/2121/1921
    3. Cabinet size/weight L500xW500mm/5kgs
    4. 3840 Hz high refresh rate
    5. 1000~1500 nits brightness
    6. Input 110v-230v 400 Watt/Cabinet max
    7. 250x250mm Front Service LED module
    8. Black color cabinet / Customized color*

  • outdoor lightweight billboard bs v2 Read more Quick View
    Rated 0 out of 5

    Lightweight LED Billboard BS-V2

     Read more Outdoor LED Displays

    SoarLume`s outdoor die-casting aluminum process significantly reduces the weight of the LED cabinet, which is over 30% lighter than traditional steel structures, meanwhile maintaining good strength and stability, which is a multi-function outdoor lightweight fixed LED display.
    1. Pixel Pitch 4mm~10mm
    2. LED Lamps SMD1921/2727/35535/DIP346
    3. Cabinet size/weight L960xW960mm/32kgs/IP65
    4. 1920~3840 Hz high refresh rate
    5. 6500~10000 nits brightness
    6. Input 110v-230v 900 Watt/Cabinet max
    7. 192x192mm/320x160mm LED module
    8. Black color cabinet / Customized color*

  • outdoor led billboard bs v1 Read more Quick View
    Rated 0 out of 5

    Outdoor LED Billboard BS-V1

     Read more Outdoor LED Displays

    SoarLume`s outdoor fixed installation LED display screens have high brightness, width viewing angle, and can work in sunlight, with certain windproof, rainproof, and waterproof functions. Mainly used for outdoor advertising, stations, squares, shopping malls, etc.
    1. Pixel Pitch 3mm~16mm
    2. LED Lamps SMD1921/2525/2727/35535/DIP346
    3. Cabinet size/weight L960xW960mm/47kgs/IP65
    4. 1920~3840 Hz high refresh rate
    5. 6500~10000 nits brightness
    6. Input 110v-230v 900 Watt/Cabinet max
    7. 192x192mm/320x160mm Front Service LED module
    8. Black color cabinet / Customized color*

  • outdoor rental led display rs v1 Read more Quick View
    Rated 0 out of 5

    Outdoor Rental LED Display RS-V1

     Read more Outdoor LED Displays

    SoarLume`s die-casting aluminum outdoor rental LED panel screen is characterized by its lightness, thinness, and fast installation. The high-brightness LED display can be clearly read under sunlight, which is suitable for large-scale leasing and fixed installation applications.
    1. Pixel Pitch 2.97/3.91/4.81mm
    2. LED Lamps SMD1921
    3. Cabinet size/weight L500xW500mm/7kgs/IP65
    4. 3840 Hz high refresh rate
    5. 3500~5500 nits brightness
    6. Input 110v-230v 500 Watt/Cabinet max
    7. 250x250mm Front Service LED module
    8. Black color cabinet / Customized color*

  • soccer led banner display high quality IP65 7000nits brightness Read more Quick View
    Rated 0 out of 5

    Soccer LED Banner Display SS-V1

     Read more Outdoor LED Displays

    SoarLume`s soccer LED banner display screen was designed for a football field, which is the core hardware for event broadcasting, commercial operation, and audience experience.
    1. Pixel Pitch 5mm/6mm/8mm/10mm
    2. LED Lamps SMD3535 or DIP346
    3. Cabinet size/weight L960xW960/1280mm/50kgs
    4. 1920~3840 Hz high refresh rate
    5. 6500~10000 nits brightness
    6. Input 110v-230v 900 Watt/Cabinet max
    7. Soft Frame LED module
    8. Black color cabinet / Customized color*
